CNC Bowl Feeders
An essential element of the innovative feeding technology is the CAD/CAM CNC Machining Bowl Feeder.
Polyamide, Nylon, Teflon or Aluminum for special applications feeder bowls are designed on 3D-CAD and manufactured on up to date 5-axis milling machines.
This technology guarantees the precise adaptation to part specific geometries and tolerances and leads to a 100% reproducibility of the conceived solutions.
- Maximum system availability
- Complete reproducibility
- Cost benefits for repeat orders
- Highly precise production with 5-axis simultaneous processing and CAM use
- 10,000x proven primary polymer feeder bowl material
CNC Machining Bowl Feeder
This finely fabricated bowl is perfect for micro precision parts (commonly 10 mm or less), high speed, high precision or ultra thin workpieces. The Bowl Feeder material can be made from Aluminium, Polyamide, Teflon, Nylon, Pomalux, etc. This particular bowl feeder range comes in multiple sizes depending on the part sample specifications.
These aluminum bowl tops are electroless nickel plating, hard anodized, hard black anodized, etc.
Field of activities:
- Semiconductors
- Electronics
- Jewelry
- Connector
- Watchmaking
- Automotive
- Medical Industry
- Screw cutting
- Food Industry
Our Semiconductors CNC Bowl Feeder Capabilities
QFN
| Size: | 1×1 till 12×12 |
| Feedrate: | 5kuph till 100kuph |
LED
| Size: | 3014, 3020,3030, 3528, 5630, 1608, 1010 |
| Feedrate: | 40kuph till 50kuph |
MSOP
| Size: | – |
| Feedrate: | > 12kuph |

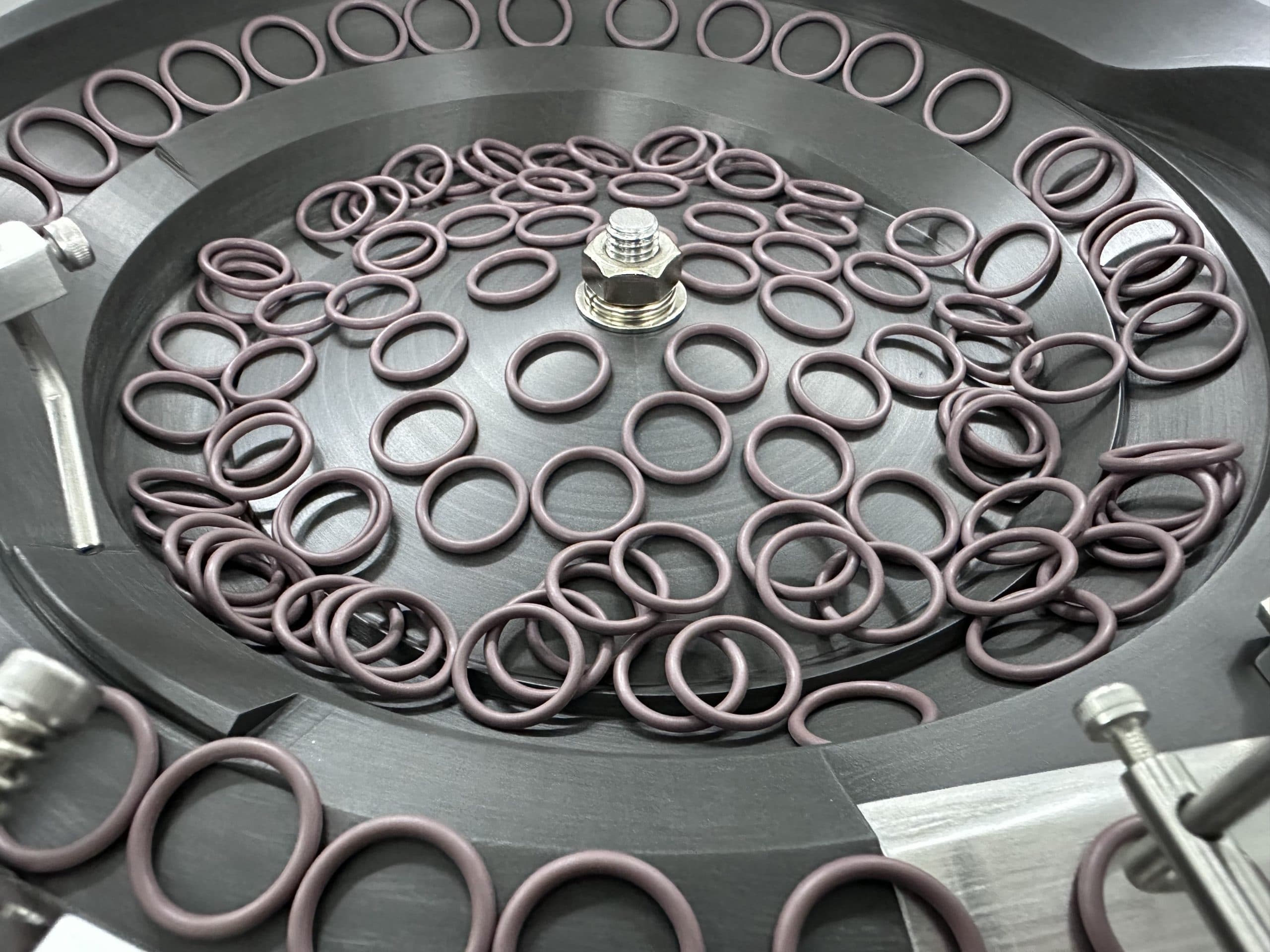

Oring
| Size: | – |
| Feedrate: | – |
Switches
| Size: | – |
| Feedrate: | 15kuph |
Diamond
| Size: | 1mm till 4mm |
| Feedrate: | > 3.6kuph |
VSOP
| Size: | – |
| Feedrate: | > 12kuph |
SOIC
| Size: | – |
| Feedrate: | > 22kuph |
Fuse
| Size: | – |
| Feedrate: | – |
Spring
| Size: | – |
| Feedrate: | – |
Probe Pin
| Size: | Diameter 0.3mm till 1.0mm |
| Feedrate: | > 3.6kuph |
Tiny Pin
| Size: | Diameter 0.3mm till 1mm |
| Feedrate: | > 7.2kuph |
Thin Plate
| Size: | Thickness 0.1mm till 1mm |
| Feedrate: | > 3.6kuph |
Ferrite Core
| Size: | 0202, 0404, 0505, 0606, 0808 |
| Feedrate: | – |
Chip Resistor
| Size: | 0603 till 3216 |
| Feedrate: | > 60kuph |
Chip Inductor
| Size: | 0603 till 1005 |
| Feedrate: | > 60kuph |
Mic Metal Can
| Size: | – |
| Feedrate: | > 18kuph |
Mini Metal Bushing
| Size: | < Diameter 1mm |
| Feedrate: | > 7.2kuph |
Chip Diode SOD
| Size: | 603, 1006 SOD523, SOD323, SOD123 |
| Feedrate: | > 22kuph |
Transistor SOT
| Size: | SC70, SOT23, TSOT |
| Feedrate: | 40kuph till 70 kuph |
Metal Stamping Part
| Size: | – |
| Feedrate: | – |
Multilayer Ceramic Capacitors
| Size: | 0603 till 3216 |
| Feedrate: | > 60kuph |
Plastic Moulding Part
| Size: | – |
| Feedrate: | – |
Watch

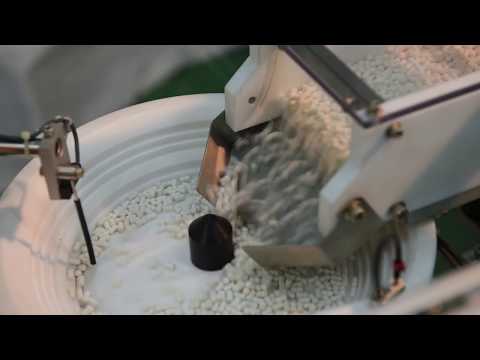

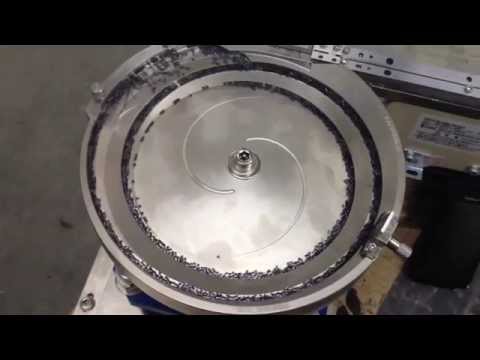

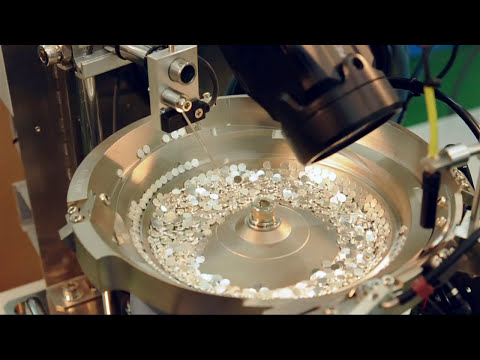

CNC bowl feeder videos for all kind of industries sectors.
